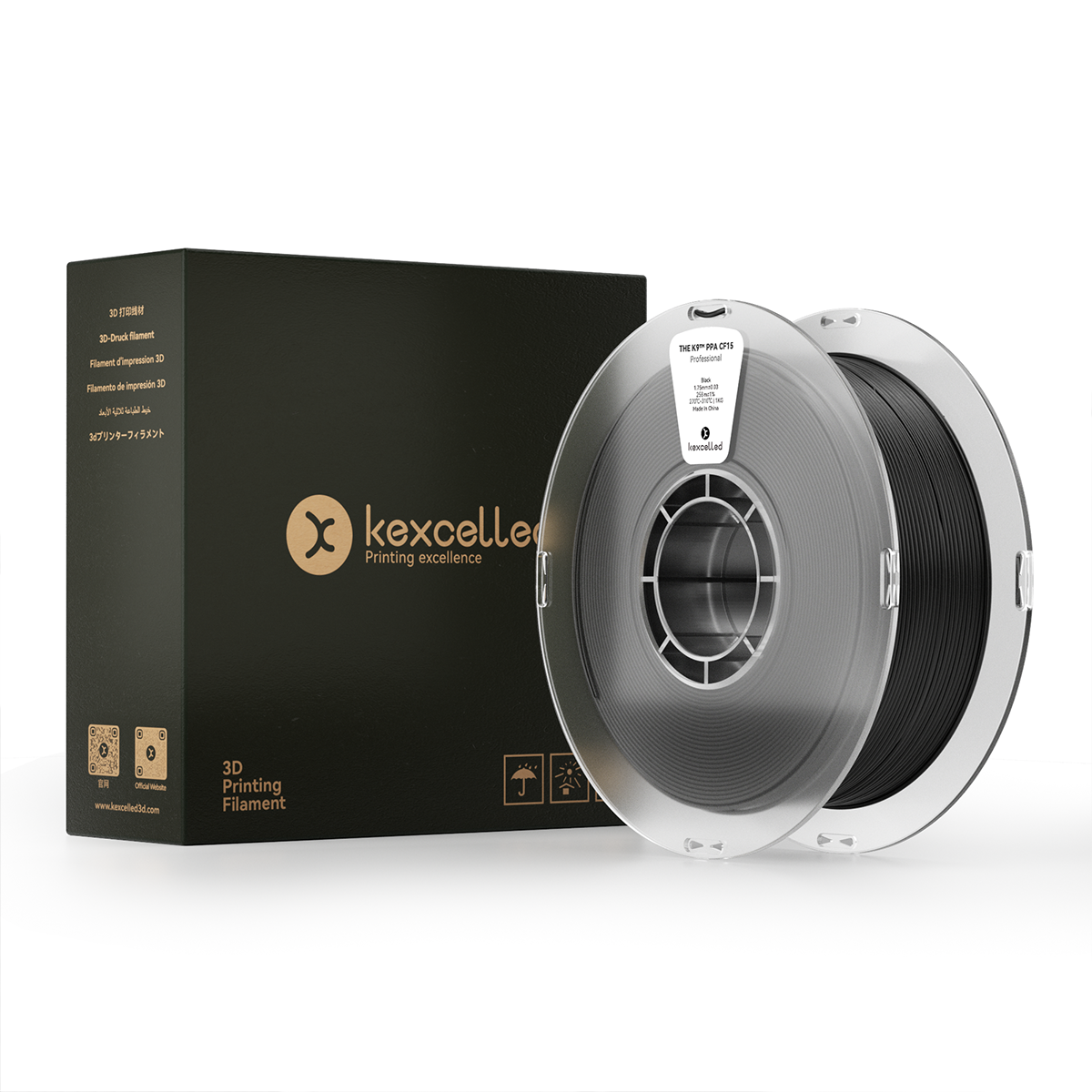

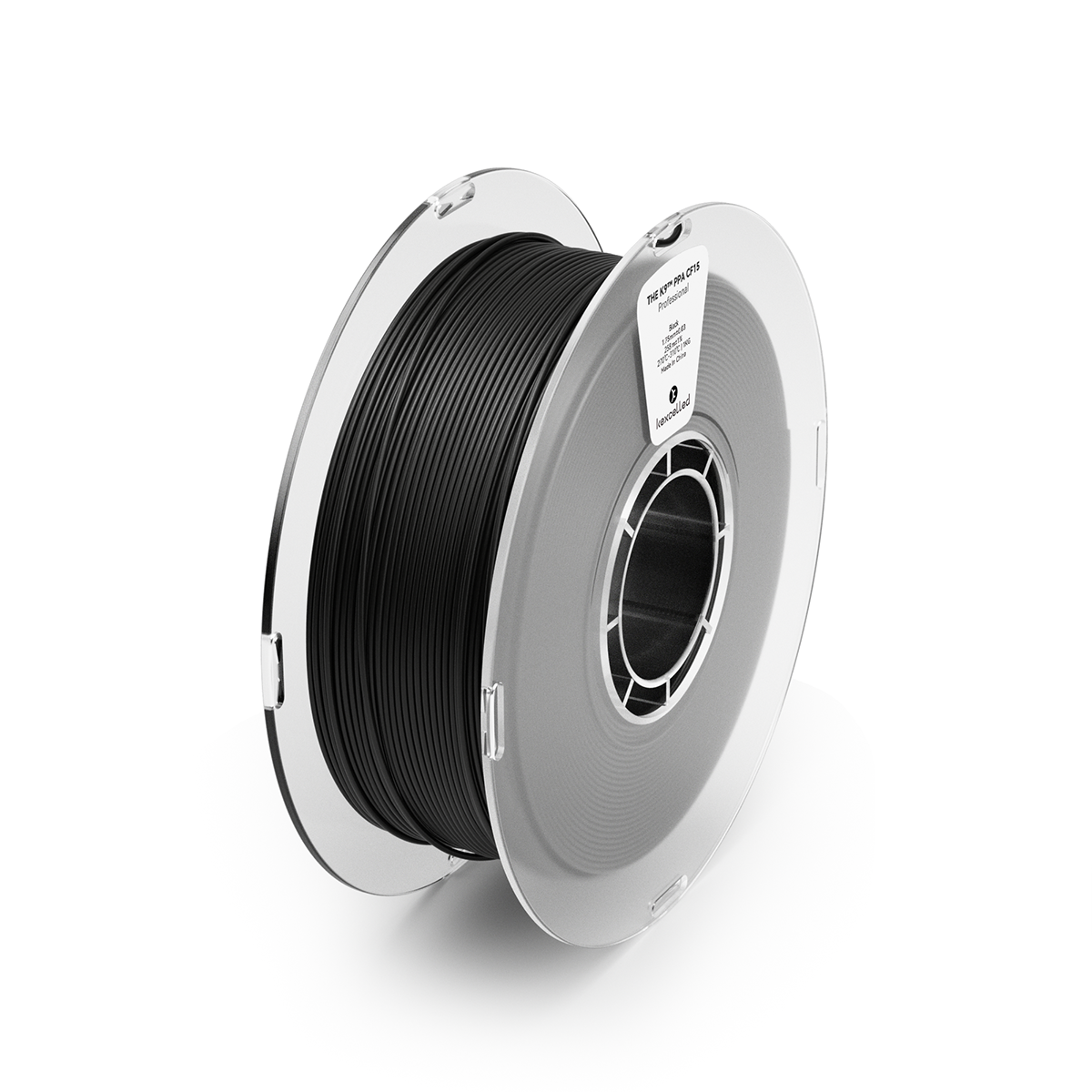

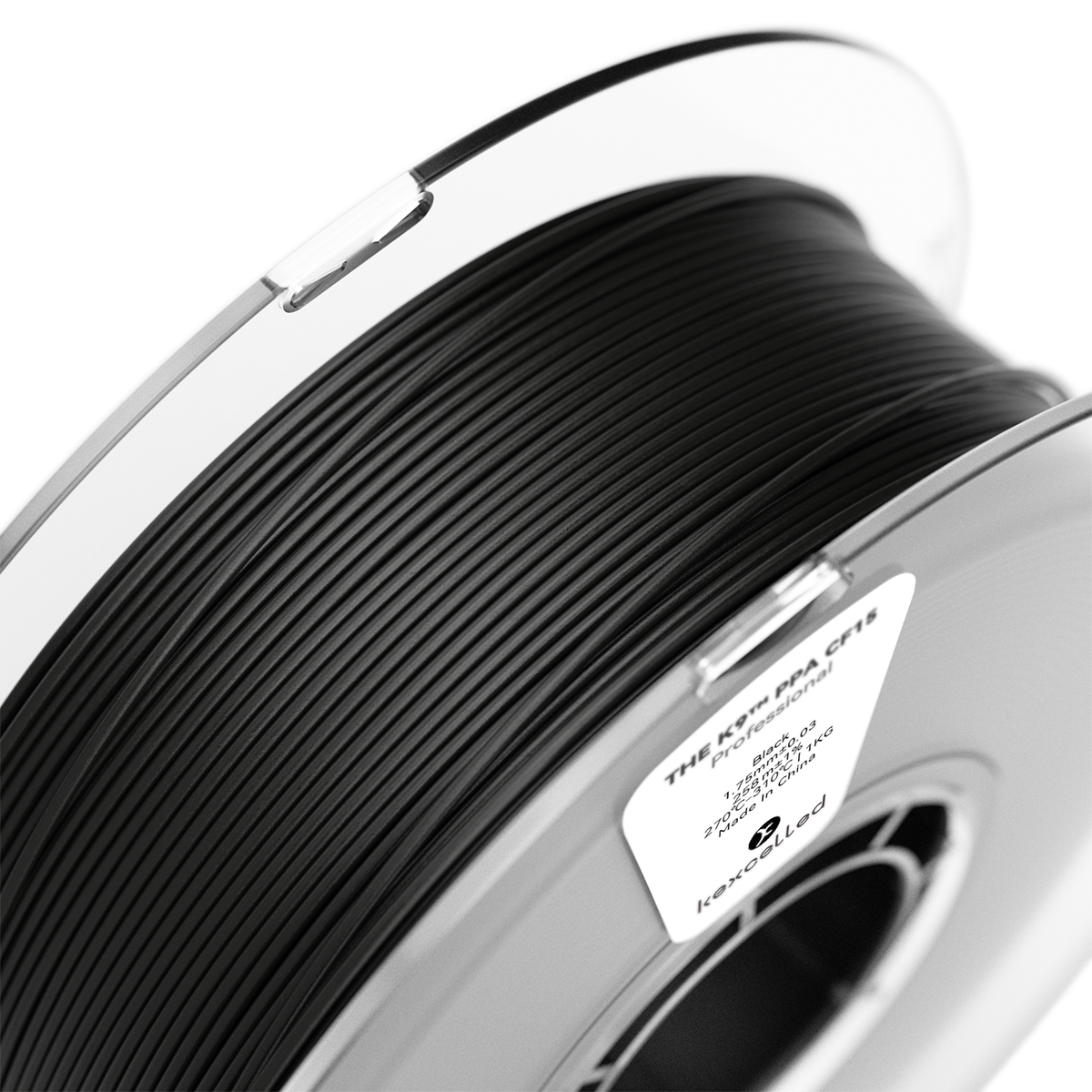

THE K9™ PPA CF15
Color
Black
Weight
THE K9™ PPA CF15 is a high-performance, carbon fiber-reinforced polyamide filament designed for demanding applications. This material offers exceptional strength, stiffness, heat resistance, and chemical resistance, making it ideal for creating durable, functional parts. With its excellent printability and low moisture absorption, this filament is easy to use and provides consistent results.
Suggested Printing Parameters
| Nozzle temperature | 270 ~ 310℃ |
| Bed temperature | 90 ~ 110℃ |
| Bed modification | Tape or glue |
| Active cooling fan | 0%~50% |
| Layer height | 0.2mm |
| Shell thickness | ≥ 0.8mm |
| Print speed | ≤250mm/smm/s |
Technical Data Sheet (TDS)
| Material Properties | Typical Value | Test Method |
|---|---|---|
| Melt temperature (HDT)² | ~260℃ | ISO 11357 |
| Melt flow rate (MFR)¹ | 15~20/10min | ISO 1133 |
| Heat deflection temperature (HDT)² | 205℃ | ISO 75 |
| Vicat softening temperature (VST)³ | 225℃ | ISO 306 |
| Density | 1.25~1.27g/cm³ | ISO 1183 |
| Odor | Odorless | / |
| Solubility | Insoluble in water | / |
