DIE K5™ ASA
Features
- Exceptional Weatherability & UV Resistance
- ABS-Like Toughness & Heat Deflection
- Built for Demanding Outdoor Applications
- Dimensional Stability & Durability
Es ist ein Material mit hoher Zähigkeit und Hitzebeständigkeit, ähnlich wie ABS, aber mit verbesserter Beständigkeit gegen Umweltalterung. Es eignet sich für Anwendungen, die Hitzebeständigkeit, Schlagfestigkeit und langfristige Outdoor-Haltbarkeit erfordern, wie z.B. Außenbauteile von Kraftfahrzeugen und Gehäuse von Klimaanlagen-Außengeräten.
Empfohlene Druckparameter
| Düsatemperatur | 250 ~ 290℃ |
| Betttemperatur | 80 ~ 100℃ |
| Bettmodifikation | PEI-mattierte Platte |
| Aktiver Kühlventilator | 0~50% |
| Schichthöhe | 0.2mm |
| Schalendicke | ≥ 0.8mm |
| Druckgeschwindigkeit | ≤ 170mm/s |
Technisches Datenblatt (TDS)
| Materialeigenschaften | Typischer Wert | Testmethode |
|---|---|---|
| Schmelztemperatur | ~190℃ | ISO 11357 |
| Schmelzflussrate (MFR)¹ | 25~40g/10min | ISO 1133 |
| Formbeständigkeitstemperatur (HDT)² |
Printing Parameters
Nozzle Temperature: 250–290°C
Bed Temperature: 80–100°C
Bed Modification: PEI frosted board
Active Cooling Fan: 0–50%
Layer Height: 0.2 mm
Shell Thickness: ≥ 0.8 mm
Print Speed: ≤ 170 mm/s
Note: Settings are based on a 0.4mm nozzle.
Description
Exceptional Weatherability & UV Resistance Engineered to resist environmental aging, yellowing, and degradation—making it the ultimate choice for long-term outdoor exposure.
ABS-Like Toughness & Heat Deflection Delivers high impact strength and thermal resistance similar to ABS, handling high structural stress and elevated temperatures effortlessly.
Built for Demanding Outdoor Applications Perfect for automotive exterior parts, outdoor enclosures, air conditioner housings, and signal hardware exposed to harsh environments.
Dimensional Stability & Durability Offers strong layer adhesion, high rigidity, and excellent dimensional tolerance for heavy-duty, long-lasting functional prints.
Technical Datasheet
Melt Temperature: ~190°C (ISO 11357)
Melt Flow Rate (MFR): 25–40 g/10min¹ (ISO 1133)
Heat Deflection Temperature (HDT): 94°C² (ISO 75)
Vicat Softening Temperature (VST): 108°C³ (ISO 306)
Density: 1.06–1.08 g/cm³ (ISO 1183)
Odor: Odorless
Solubility: Insoluble in water
Note: ¹ Test conditions: T= 220℃; m= 10kg. ² Test conditions: 0.45MPa; 120℃/h. ³ Test conditions: 10N; 120℃/h.
Applications

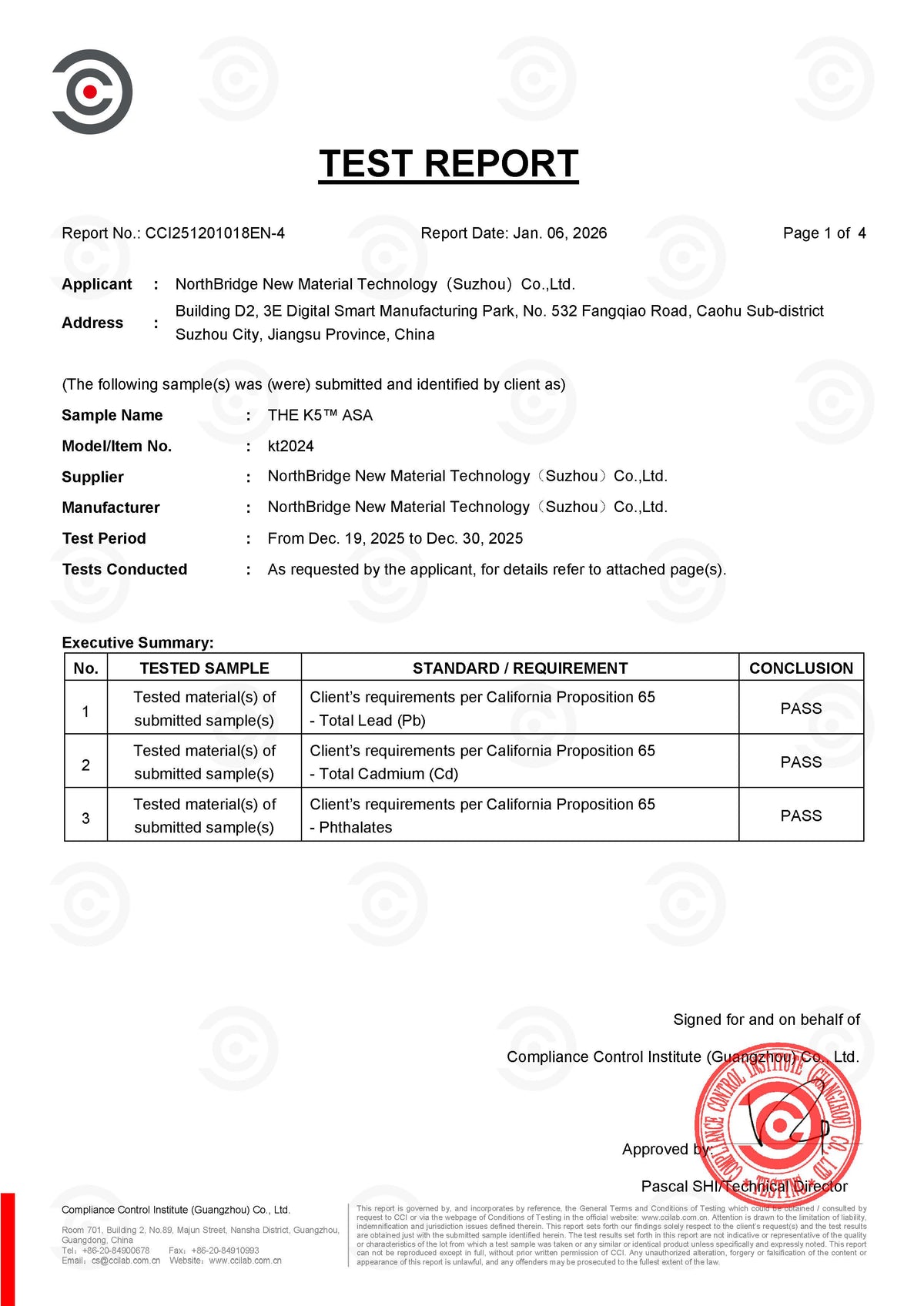

Certificates
