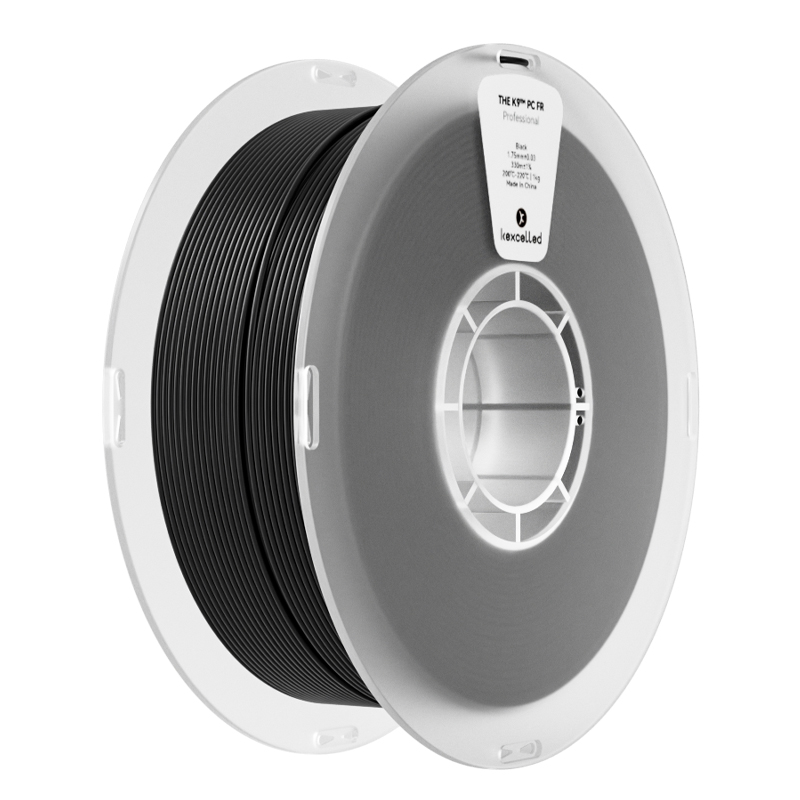

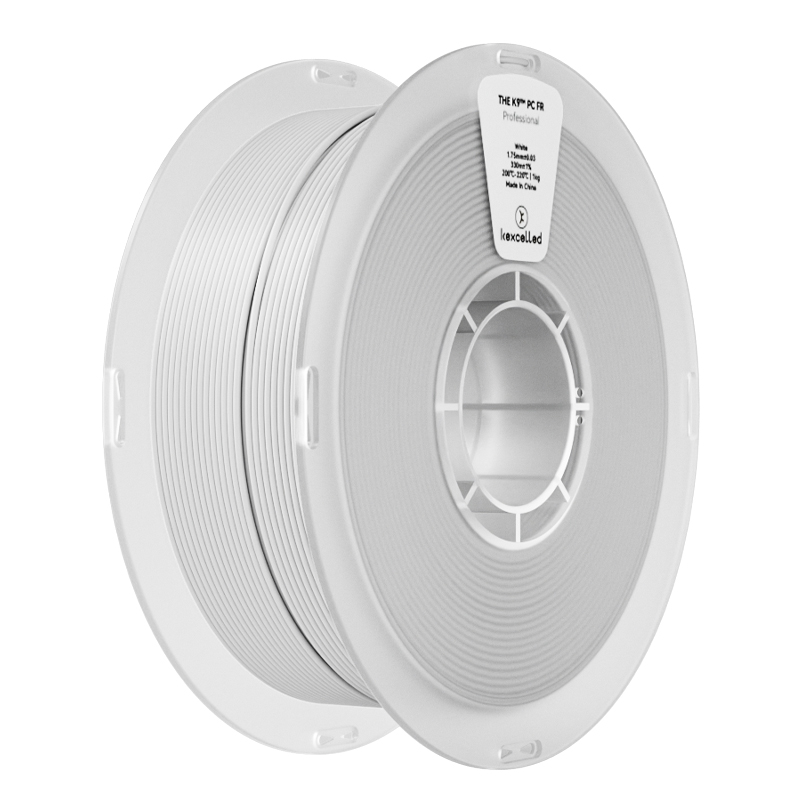

THE K9™ PC FR

THE K9™ PC FR is a high flowability, low warpage UL94-V0 rated flame retardant PC material.

Temperature Resistance Strength Toughness Rigidity Ease of Printing Z-axis Strength

Suggested Printing Parameters

Nozzle temperature260 ~ 300℃
Bed temperature100 ~ 120℃
Bed modificationTape or glue
Active cooling fan0~50%%
Layer height0.2mm
Shell thickness≥ 0.8mm
Print speed≤ 500mm/s
Settings are based on a 0.4mm nozzle.

Technical Data Sheet (TDS)

Material Properties Typical Value Test Method
Melt temperature (HDT)²~230℃ISO 11357
Melt flow rate (MFR)¹15~20g/10minISO 1133
Heat deflection temperature (HDT)²111℃ISO 75
Vicat softening temperature (VST)³122℃ISO 306
Density1.18~1.20g/cm³ISO 1183
OdorOdorless/
SolubilityInsoluble in water/

1. Test conditions: T= 270℃; m= 2.16kg.

2. Test conditions: 0.45MPa; 120℃/h.

3. Test conditions: 10N; 120℃/h.

Color Selector
Select a color
Weight options:
Spool : 1kg, 3kg, 5kg
