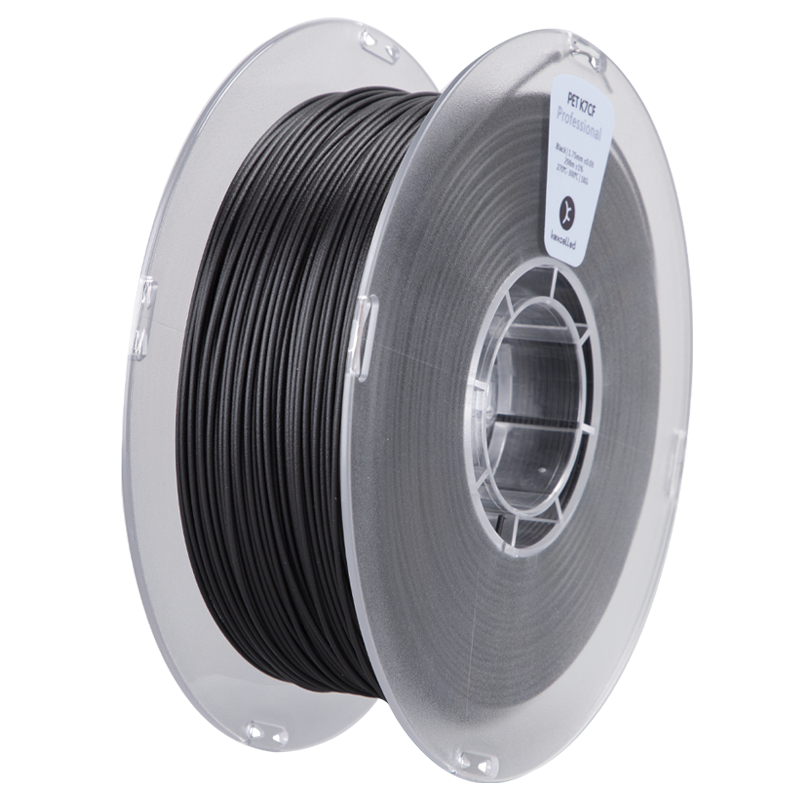

THE K7™ PET CF10

THE K7™ PET CF10 is a carbon fiber-reinforced PET material. It offers high stiffness, high surface hardness, high strength, and wear resistance. As an entry-level high-performance FDM material, it is extremely easy to print. With lower moisture absorption than PA-CF, it is suitable for structural parts demanding high material performance.

Technical Data Sheet (TDS)

Material Properties	Typical Value	Test Method
Melt flow rate (MFR)¹	60~70g/10min	ISO 1133
Heat deflection temperature (HDT)²	80℃	ISO 75
Vicat softening temperature (VST)³	102℃	ISO 306
Density	1.32~1.34g/cm³	ISO 1183
Odor	Odorless	/
Solubility	Insoluble in water	/

        Suggested Printing Parameters

                Nozzle temperature
                250 ~ 290℃

                Bed temperature
                90 ~ 110℃

                Bed modification
                Tape or glue

                Active cooling fan
                0 ~ 50%

                Layer height
                0.2mm

                Shell thickness
                ≥ 0.8mm

                Print speed
                ≤ 200mm/s

        Settings are based on a 0.4mm nozzle.
