Technical Data Sheet (TDS)

Material Properties	Typical Value	Test Method
Melt temperature (HDT)²	~300℃	ISO 11357
Melt flow rate (MFR)¹	60~70g/10min	ISO 1133
Heat deflection temperature (HDT)²	168℃	ISO 75
Vicat softening temperature (VST)³	181	ISO 306
Density	1.28g/cm³	ISO 1183
Odor	Odorless	/
Solubility	Insoluble in water	/

        Suggested Printing Parameters

                Nozzle temperature
                340 ~ 370℃

                Bed temperature
                140 ~ 220℃

                Chamber temperature
                90 ~ 200℃

                Bed modification
                High temperature glue

                Active cooling fan
                OFF

                Layer height
                0.2mm

                Shell thickness
                ≥ 0.8mm

                Print speed
                30~60mm/s

        Settings are based on a 0.4mm nozzle.

Color Selector

Select a color

Weight options:

: 1kg, 3kg, 5kg

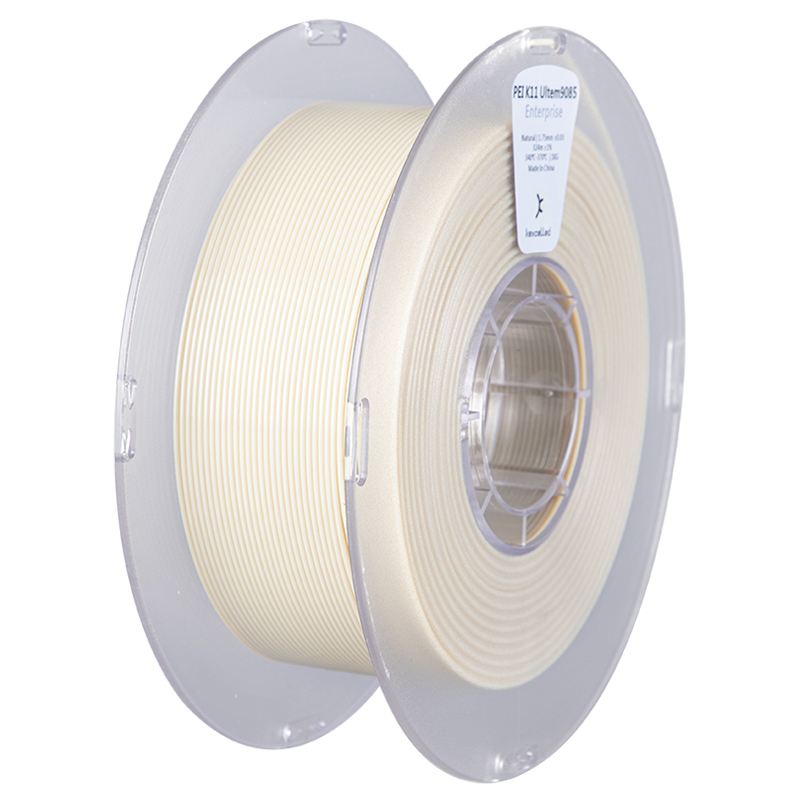

THE K12™ PEI 9085

THE K12™ PEI 9085 is a polyetherimide material with a relatively low molding temperature and excellent flow properties. This aerospace-proven material offers exceptional resistance to heat, flame, and chemicals, combined with high strength and toughness. These properties make PEI 9085 an ideal choice for demanding applications in various industries.
