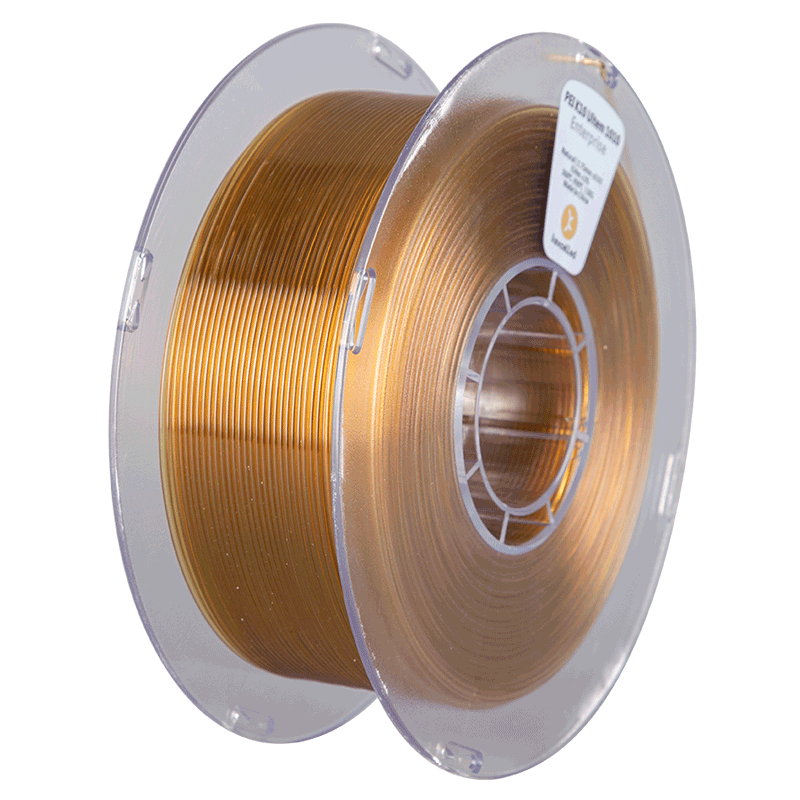

THE K11™ PEI 1010

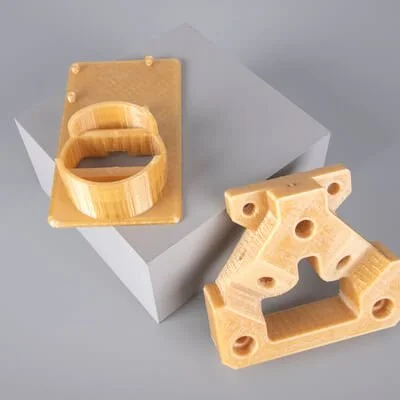

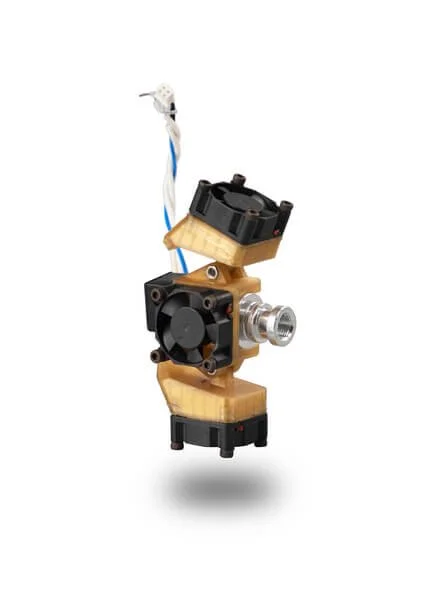

THE K11™ PEI 1010 is a polyetherimide material applicable to 3D printing. It is characterized by multiple properties, including high strength and toughness, heat deflection temperature and Vicat softening temperature up to about 200°C, resistance to gasoline, various hydrocarbon solvents, dilute acids and alkalis, and flame retardancy grade up to UL94 V-0. It is widely applicable to concept modeling, functional prototypes, end-use components.

Technical Data Sheet (TDS)

Material Properties	Typical Value	Test Method
Melt temperature	~320℃	ISO 11357
Melt flow rate (MFR)¹	35~40g/10min	ISO 1133
Heat deflection temperature (HDT)²	208℃(before annealing)/ 182℃(after annealing)³	ISO 75
Vicat softening temperature (VST)³	210℃	ISO 306
Density	1.28g/cm³	ISO 1183
Odor	Odorless	/
Solubility	Insoluble in water	/

        Suggested Printing Parameters

                Nozzle temperature
                360 ~ 390℃

                Bed temperature
                150 ~ 240℃

                Chamber temperature
                90 ~ 220℃

                Bed modification
                High temperature glue

                Active cooling fan
                OFF

                Layer height
                0.2mm

                Shell thickness
                ≥ 0.8mm

                Print speed
                30~60mm/s

        Settings are based on a 0.4mm nozzle.
