Technical Data Sheet (TDS)

Material Properties	Typical Value	Test Method
Melt temperature	~338℃	ISO 11357
Melt flow rate (MFR)¹	20~25g/10min	ISO 1133
Heat deflection temperature (HDT)²	159℃(before annealing)/ 182℃(after annealing)³	ISO 75
Vicat softening temperature (VST)³	170℃(before annealing)/ ＞230℃(after annealing)	ISO 306
Density	1.28g/cm³	ISO 1183
Odor	Odorless	/
Solubility	Insoluble in water	/

        Suggested Printing Parameters

                Nozzle temperature
                380 ~ 420℃

                Bed temperature
                100 ~ 150℃

                Bed modification
                High temperature glue

                Active cooling fan
                ON,80%%

                Layer height
                0.2mm

                Shell thickness
                ≥ 0.8mm

                Print speed
                30~60mm/s

        Settings are based on a 0.4mm nozzle.

Color Selector

Select a color

Weight options:

: 250g, 500g, 1kg

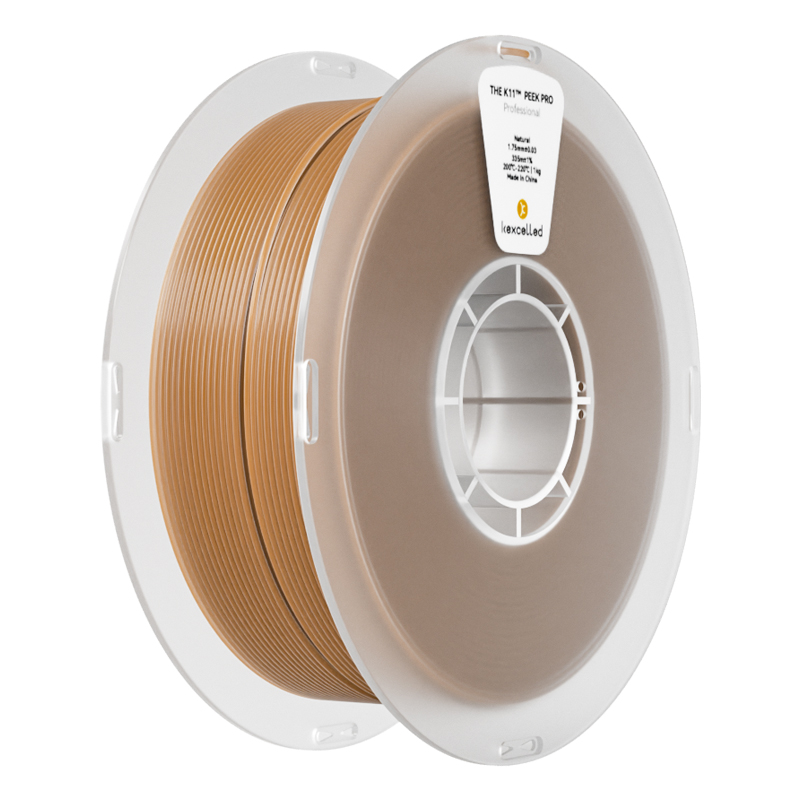

THE K11™ PEEK PRO

THE K11™ PEEK PRO is an advanced PEEK alloy material engineered for enhanced 3D printing performance. Its slower crystallization rate, higher heat resistance, and exceptional strength make it a superior choice compared to traditional PEEK materials. This material is easier to print, less sensitive to environmental temperature variations, and delivers significantly higher Z-axis strength in printed parts.
