Technical Data Sheet (TDS)

Material Properties	Typical Value	Test Method
Melt temperature (HDT)²	~340℃	ISO 11357
Melt flow rate (MFR)¹	10~15g/10min	ISO 1133
Heat deflection temperature (HDT)²	200℃	ISO 75
Vicat softening temperature (VST)³	/	ISO 306
Density	1.12g/cm³	ISO 1183
Odor	Odorless	/
Solubility	Insoluble in water	/

        Suggested Printing Parameters

                Nozzle temperature
                400 ~ 450℃

                Bed temperature
                100 ~ 120℃

                Bed modification
                NO

                Active cooling fan
                OFF

                Layer height
                0.2mm

                Shell thickness
                ≥ 0.8mm

                Print speed
                30~60mm/s

        Settings are based on a 0.4mm nozzle.

Color Selector

Select a color

Weight options:

: 1kg, 3kg, 5kg

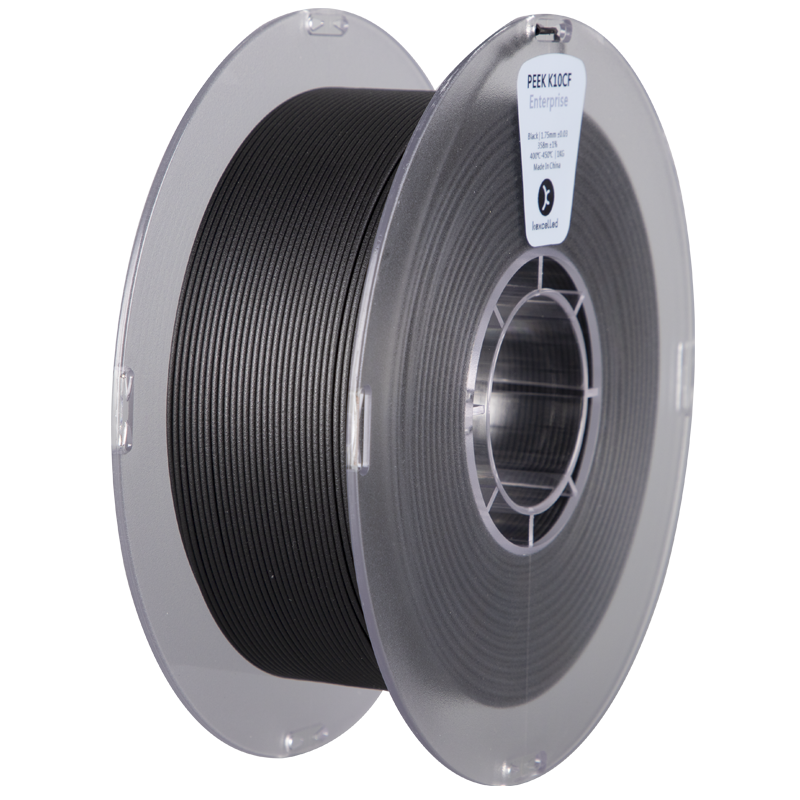

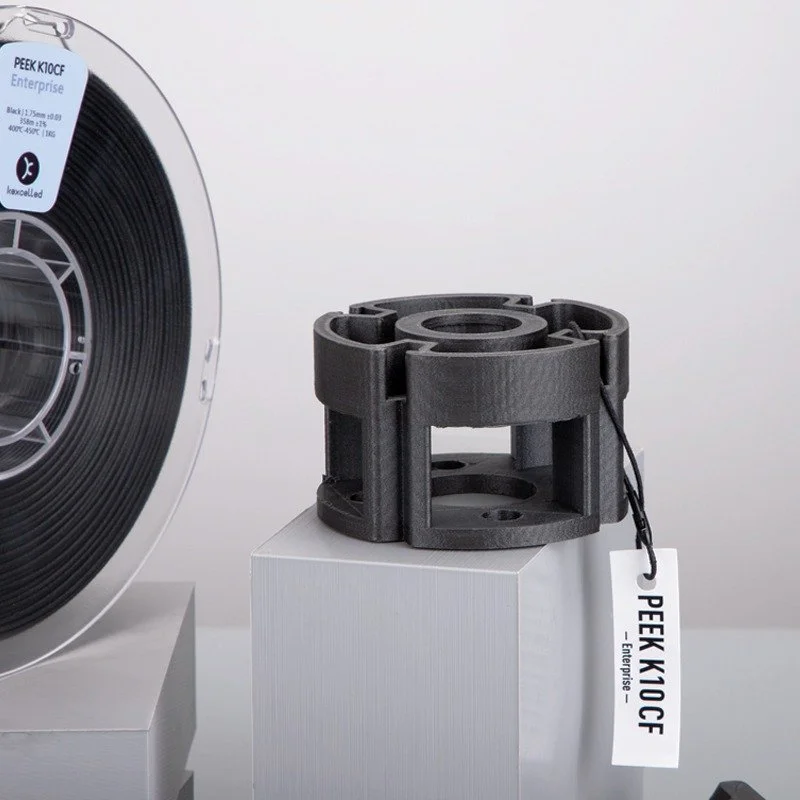

THE K11™ PEEK CF10

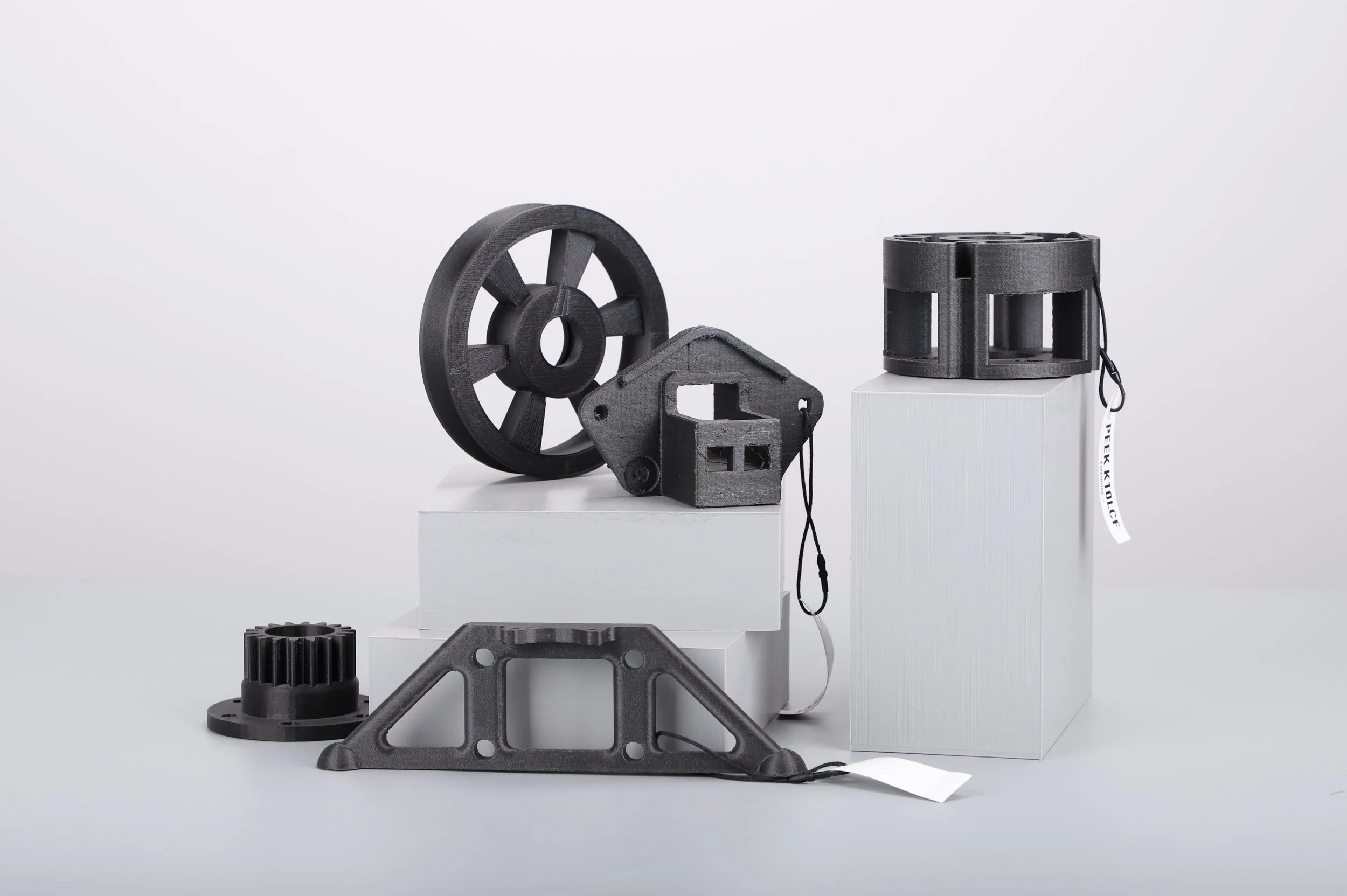

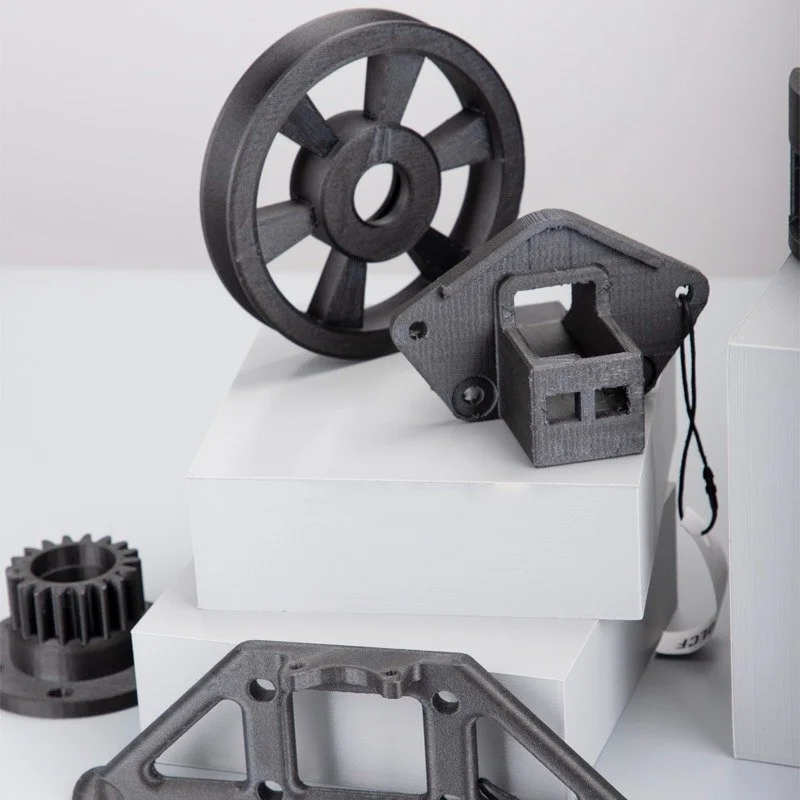

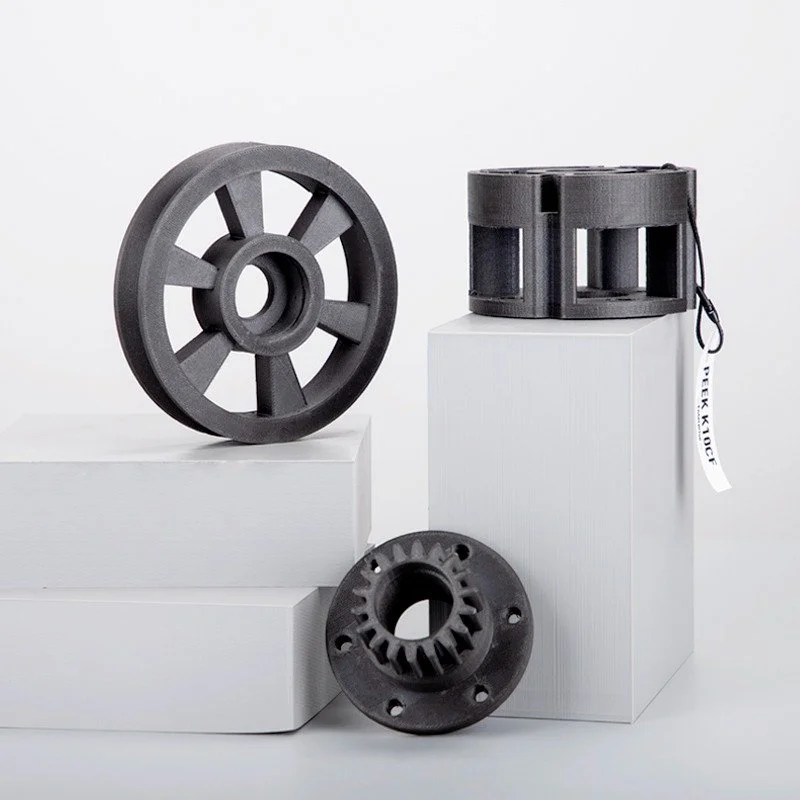

THE K11™ PEEK CF10 is a carbon fiber-reinforced PEEK material with high strength and rigidity, and resistance to high temperatures. Instead of metal parts in many applications, printed products are lightweight and strong with high-quality interlayer adhesion and smooth surface, which are less prone to warpage.
