Technical Data Sheet (TDS)

Material Properties	Typical Value	Test Method
Melt temperature (HDT)²	~340℃	ISO 11357
Melt flow rate (MFR)¹	14~18g/10min	ISO 1133
Heat deflection temperature (HDT)²	150℃	ISO 75
Vicat softening temperature (VST)³	170℃	ISO 306
Density	1.28g/cm³	ISO 1183
Odor	Odorless	/
Solubility	Insoluble in water	/

        Suggested Printing Parameters

                Nozzle temperature
                400 ~ 450℃

                Bed temperature
                110 ~ 220℃

                Chamber temperature
                40~60℃ or 90~200℃

                Bed modification
                NO

                Active cooling fan
                0~100%

                Layer height
                0.2mm

                Shell thickness
                ≥ 0.8mm

                Print speed
                30~60mm/s

        Settings are based on a 0.4mm nozzle.

Color Selector

Select a color

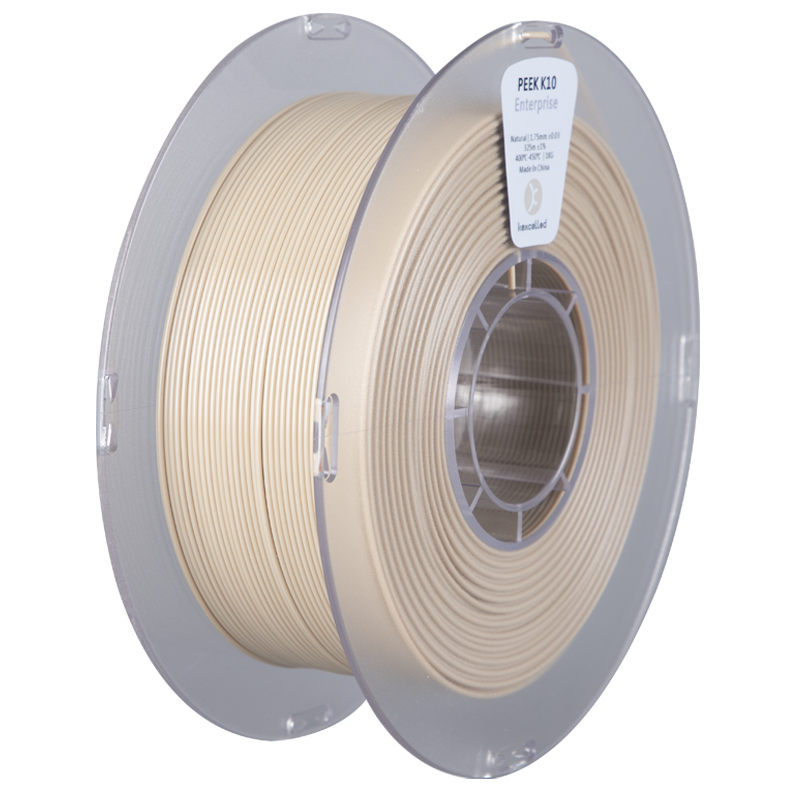

Weight options:

: 1kg, 3kg, 5kg

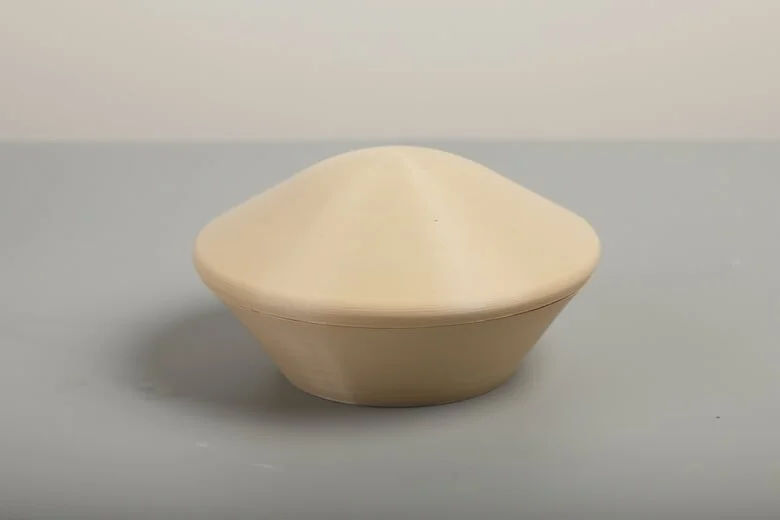

THE K11™ PEEK

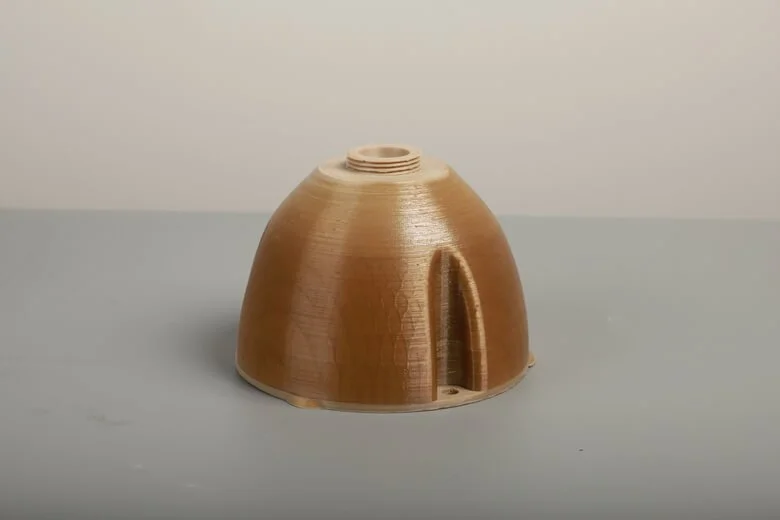

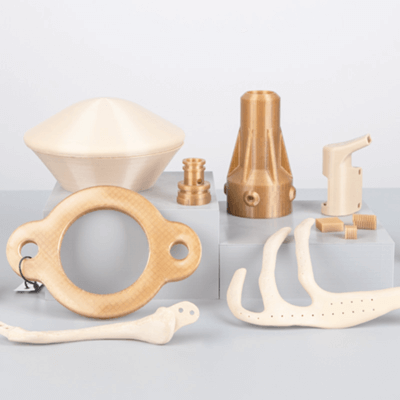

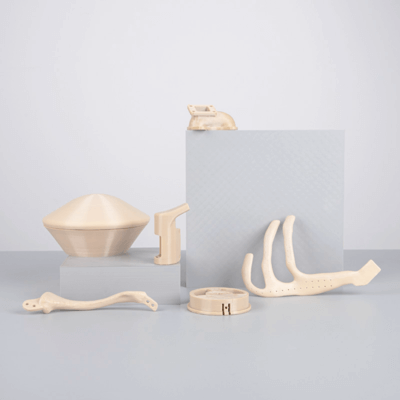

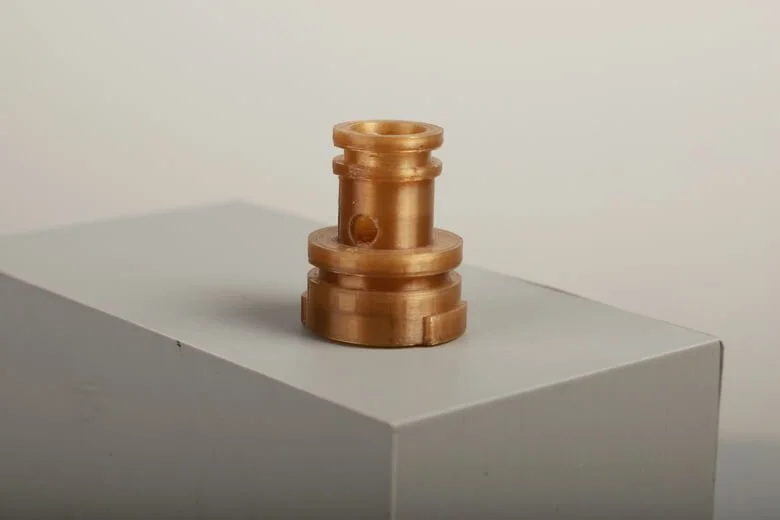

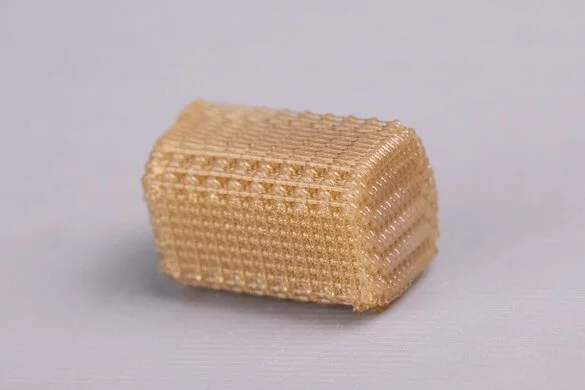

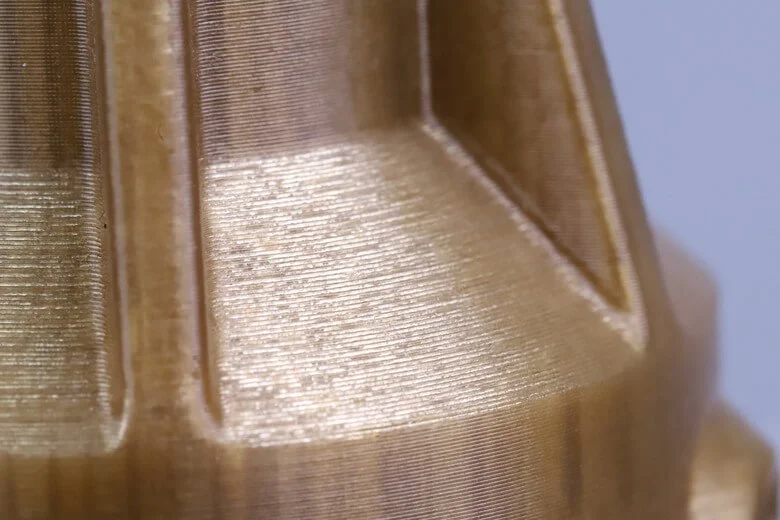

Offers exceptional mechanical and thermal properties, making it suitable for a wide range of applications. This material is inherently self-extinguishing, resistant to radiation, solvents, and most chemicals, and is biocompatible. These outstanding properties make PEEK ideal for demanding applications, including precise electronic components, high-temperature and flame-resistant parts, and certain medical devices.
