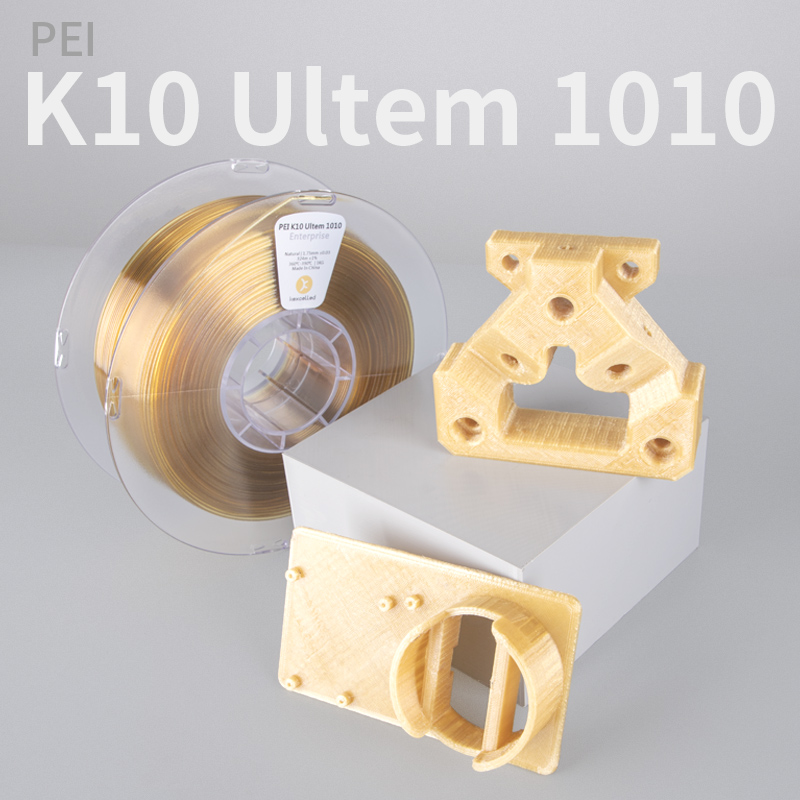

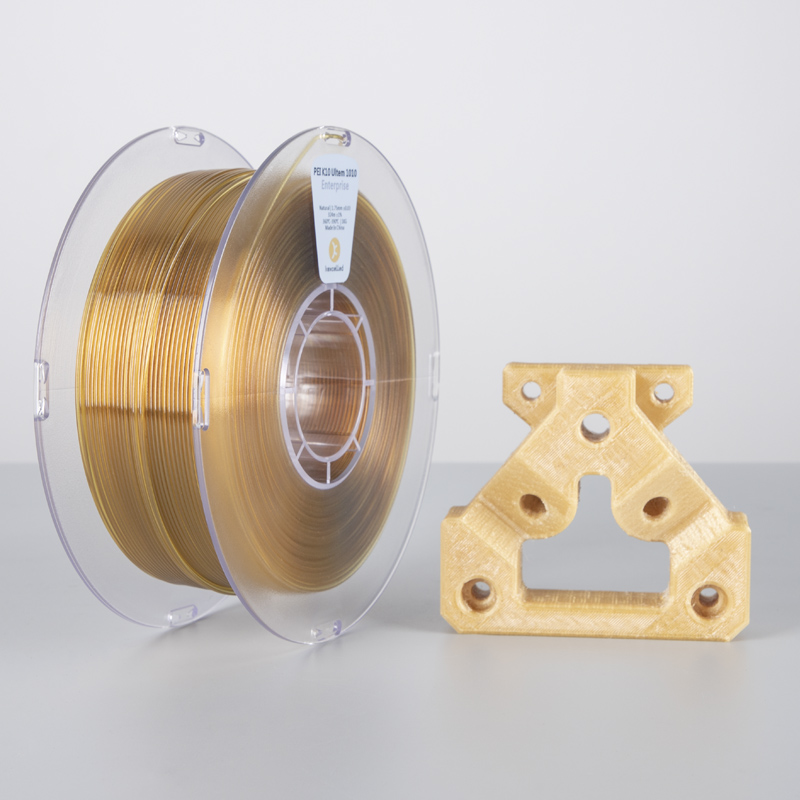

THE K11™ PEI 1010
Features
- High Mechanical Strength & Toughness
- 200°C Heat Deflection Resistance
- UL94 V-0 Flame Retardancy
- Broad Chemical & Solvent Resistance
- High Thermal Stability
- Industrial-Grade Versatility
-
Standard spool: 1 kg | also available in 3 kg and 5 kg
- Diameter: 1.75mm
- Spool: PC - Heat resistant up to 125°C
Printing Parameters
Nozzle Temperature: 360–390°C
Bed Temperature: 150–240°C
Chamber Temperature: 90–220°C
Bed Modification: High temperature glue
Active Cooling Fan: OFF
Layer Height: 0.2 mm
Shell Thickness: ≥ 0.8 mm
Print Speed: 30–60 mm/s
Note: Settings are based on a 0.4mm nozzle.
Description
High Mechanical Strength & Toughness: Exceptional tensile and flexural properties paired with high impact resistance for structural components.
200°C Heat Deflection Resistance: Outstanding thermal stability with an HDT exceeding 200°C under load, suitable for continuous high-temperature environments.
UL94 V-0 Flame Retardancy: Inherent flame retardant behavior achieving UL94 V-0 ratings with low smoke evolution.
Broad Chemical & Solvent Resistance: Highly inert against harsh industrial chemicals, automotive fluids, acids, and organic solvents.
High Thermal Stability: Resists oxidative and thermal degradation during long-duration thermal exposure.
Industrial-Grade Versatility: Excellent dimensional control and reliability for demanding aerospace, automotive, and industrial end-use applications.
Technical Datasheet
Melt Temperature: ~320°C (ISO 11357)
Melt Flow Rate (MFR): 35–40 g/10min¹ (ISO 1133)
Heat Deflection Temperature (HDT): 208°C² (ISO 75)
Vicat Softening Temperature (VST): 210°C³ (ISO 306)
Density: 1.28 g/cm³ (ISO 1183)
Odor: Odorless
Solubility: Insoluble in water
Note: ¹ Test conditions: T= 365℃; m= 5kg. ² Test conditions: 0.45MPa; 120℃/h. ³ Test conditions: 10N; 120℃/h.
