THE K11™ PEEK
Features
- High Mechanical Strength & Toughness
- Excellent Heat Resistance
- Biocompatibility
- Inherent Flame Resistance & Self-Extinguishing
- Broad Chemical & Solvent Resistance
- Radiation Resistance
-

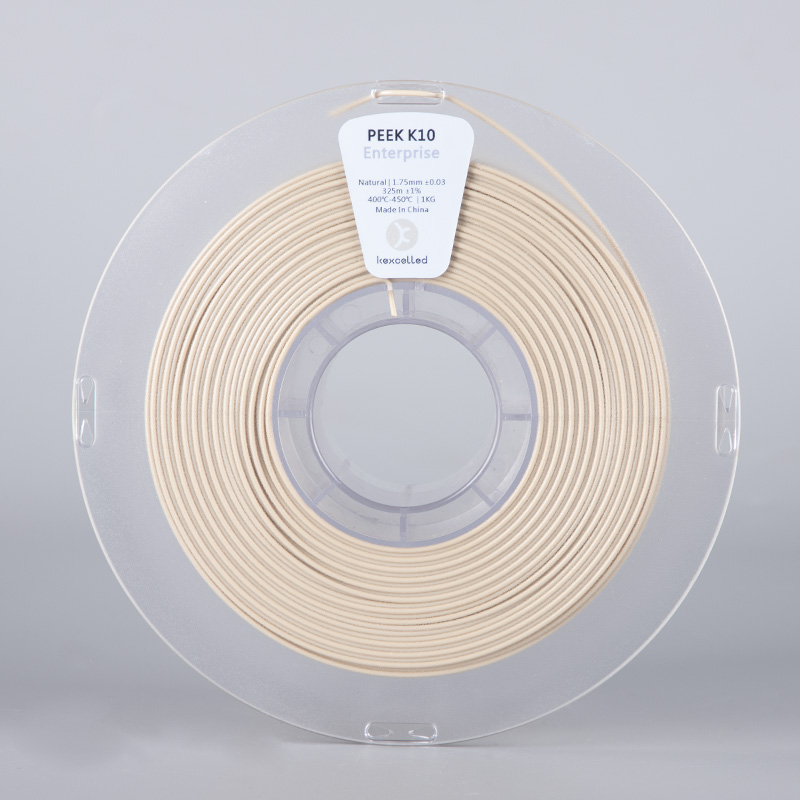

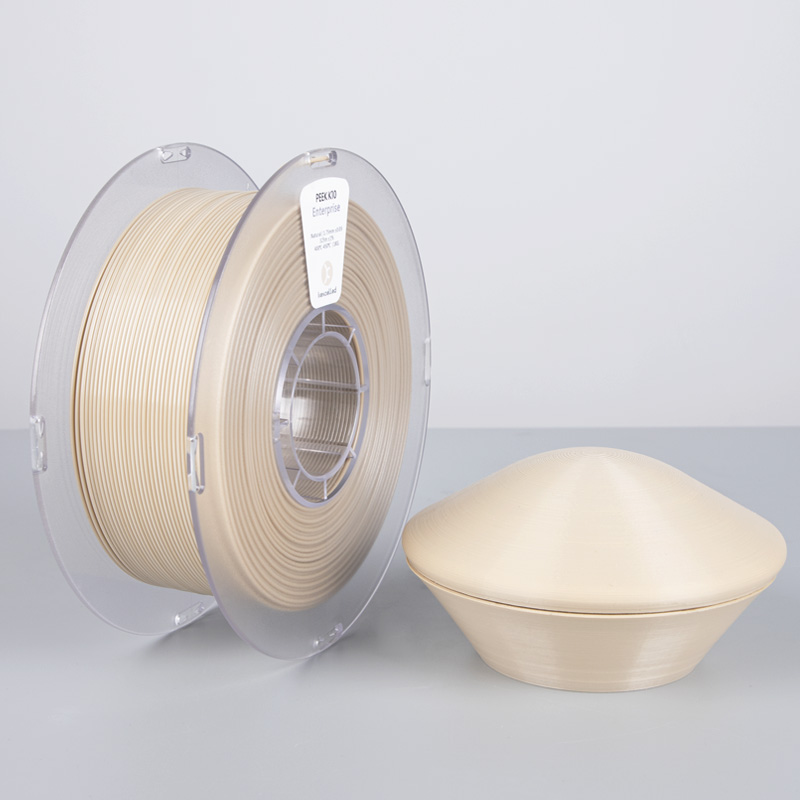

Standard spool: 1 kg | also available in 3 kg and 5 kg
- Diameter: 1.75mm
- Spool: PC - Heat resistant up to 125°C
Printing Parameters
Nozzle Temperature: 400–450°C
Bed Temperature: 110–220°C
Chamber Temperature: 40–60°C or 90–200°C
Bed Modification: NO
Active Cooling Fan: 0–100%
Layer Height: 0.2 mm
Shell Thickness: ≥ 0.8 mm
Print Speed: 30–60 mm/s
Note: Settings are based on a 0.4mm nozzle.
Description
High Mechanical Strength & Toughness: Combines high tensile performance with exceptional impact resistance for structural applications.
Excellent Heat Resistance: Capable of withstanding elevated operating temperatures without thermal distortion.
Biocompatibility: Suitable for specialized medical and bodily contact applications requiring high purity and non-toxicity.
Inherent Flame Resistance & Self-Extinguishing: Features intrinsic UL94 V-0 level flame retardancy without additive leaching.
Broad Chemical & Solvent Resistance: Highly inert against organic solvents, harsh acids, bases, and automotive fluids.
Radiation Resistance: Retains physical integrity and mechanical properties under exposure to gamma, UV, and X-ray radiation.
Technical Datasheet
Melt Temperature: ~340°C (ISO 11357)
Melt Flow Rate (MFR): 14–18 g/10min¹ (ISO 1133)
Heat Deflection Temperature (HDT): 150°C (amorphous state) / 170°C (crystalline state)² (ISO 75)
Vicat Softening Temperature (VST): N/A³ (ISO 306)
Density: 1.28 g/cm³ (ISO 1183)
Odor: Odorless
Solubility: Insoluble in water
Note: ¹ Test conditions: T= 380℃; m= 5kg. ² Test conditions: 0.45MPa; 120℃/h. ³ Test conditions: 10N; 120℃/h.
