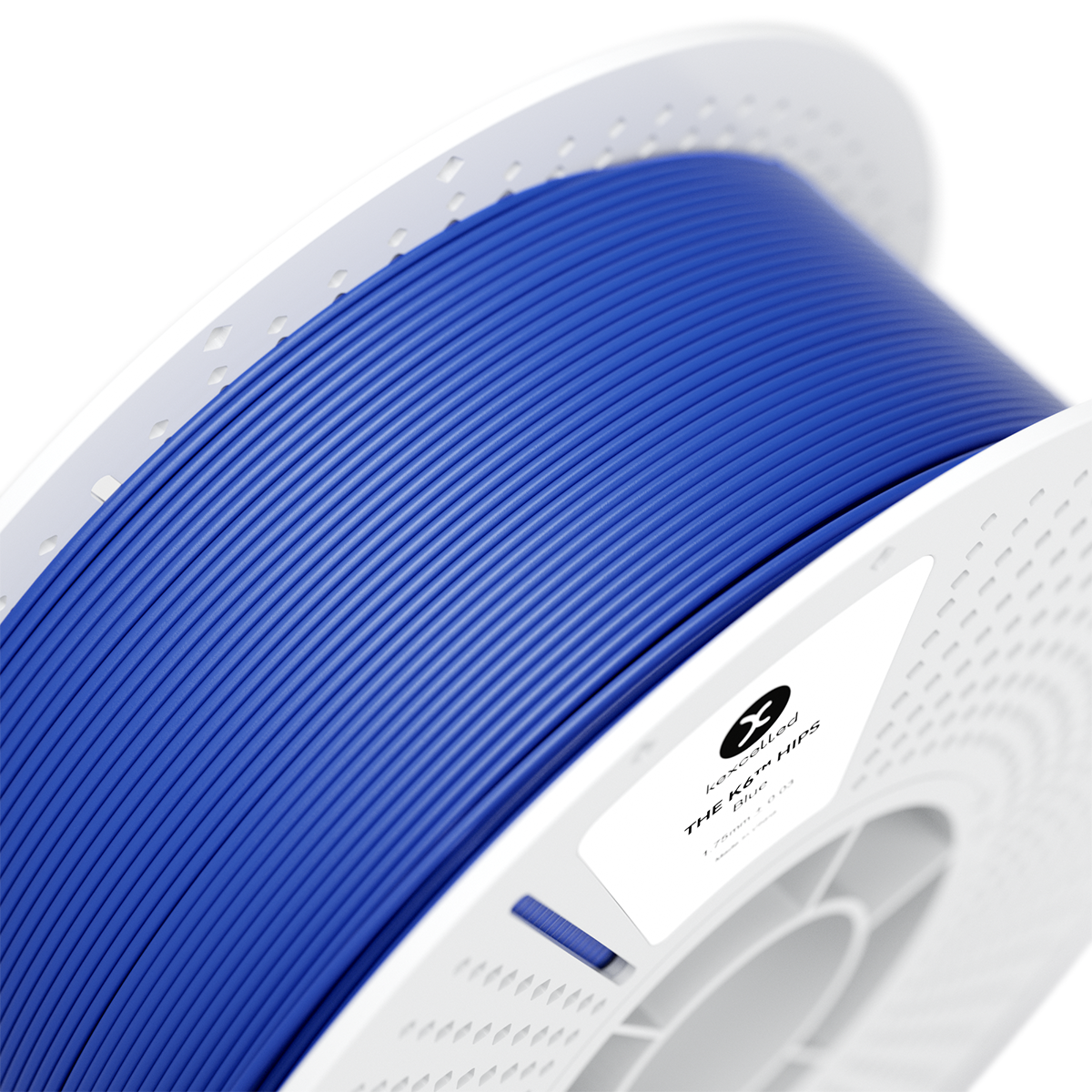

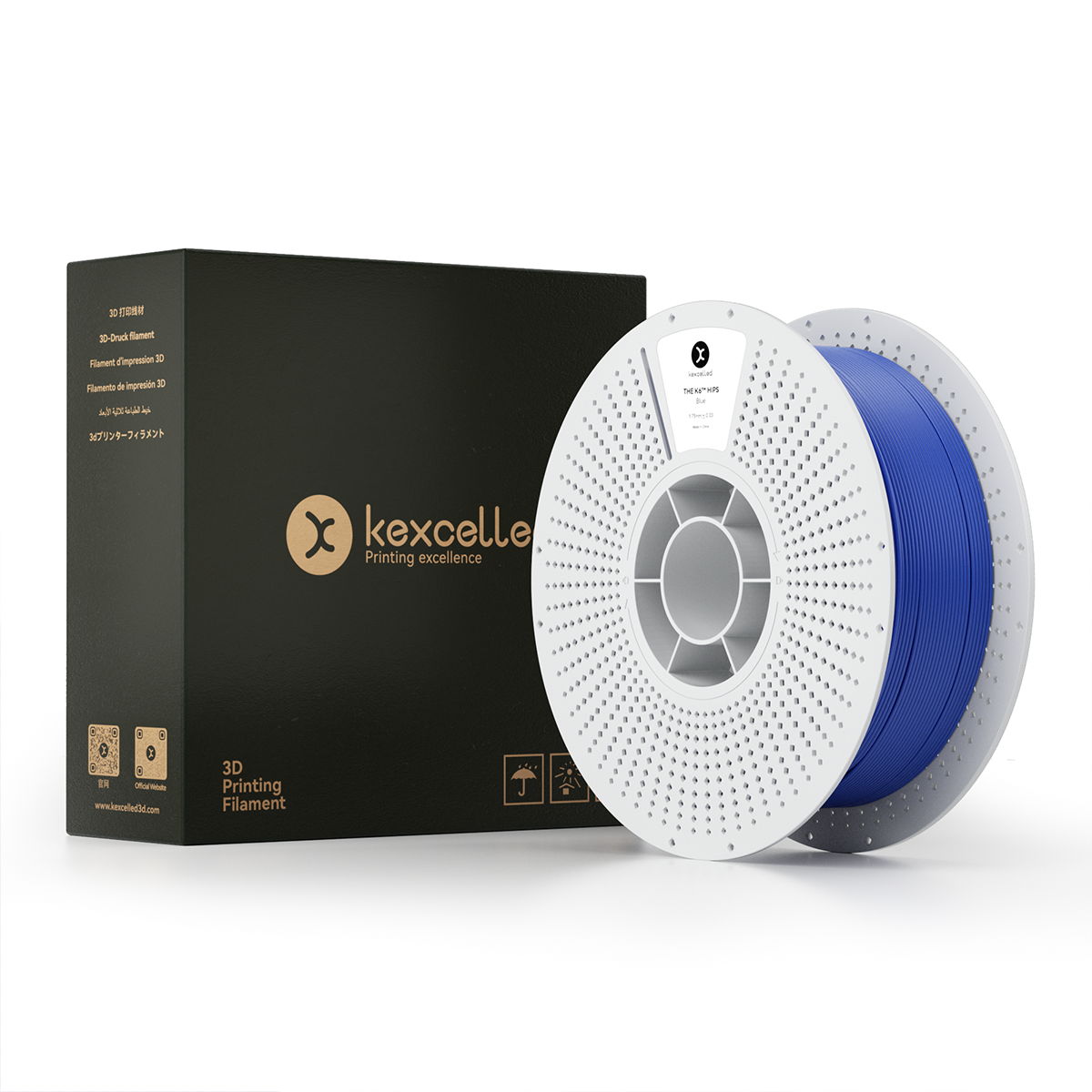

THE K6™ HIPS
Color
Blue
Weight
Diameter
This is a colorant-free support material with good performance and easy printability, which is completely soluble in limonene. When used as a support material for multi-jet printing, it prints smoothly with a clean surface with similar thermal properties to ABS materials. It is also a good-performance printing consumable with a clean surface and greater impact resistance.
Suggested Printing Parameters
| Nozzle temperature | 230 ~ 250℃ |
| Bed temperature | 80 ~ 100℃ |
| Bed modification | Tape or glue |
| Active cooling fan | 0~50% |
| Layer height | 0.2mm |
| Shell thickness | ≥ 0.8mm |
| Print speed | 40-80mm/s |
Technical Data Sheet (TDS)
| Material Properties | Typical Value | Test Method |
|---|---|---|
| Melt temperature | ~240℃ | ISO 11357 |
| Melt flow rate (MFR)¹ | 5~7g/10min | ISO 1133 |
| Heat deflection temperature (HDT)² | 97℃ | ISO 75 |
| Vicat softening temperature (VST)³ | 103℃ | ISO 306 |
| Density | 1.04g/cm³ | ISO 1183 |
| Odor | Low odor | / |
| Solubility | Insoluble in water | / |
