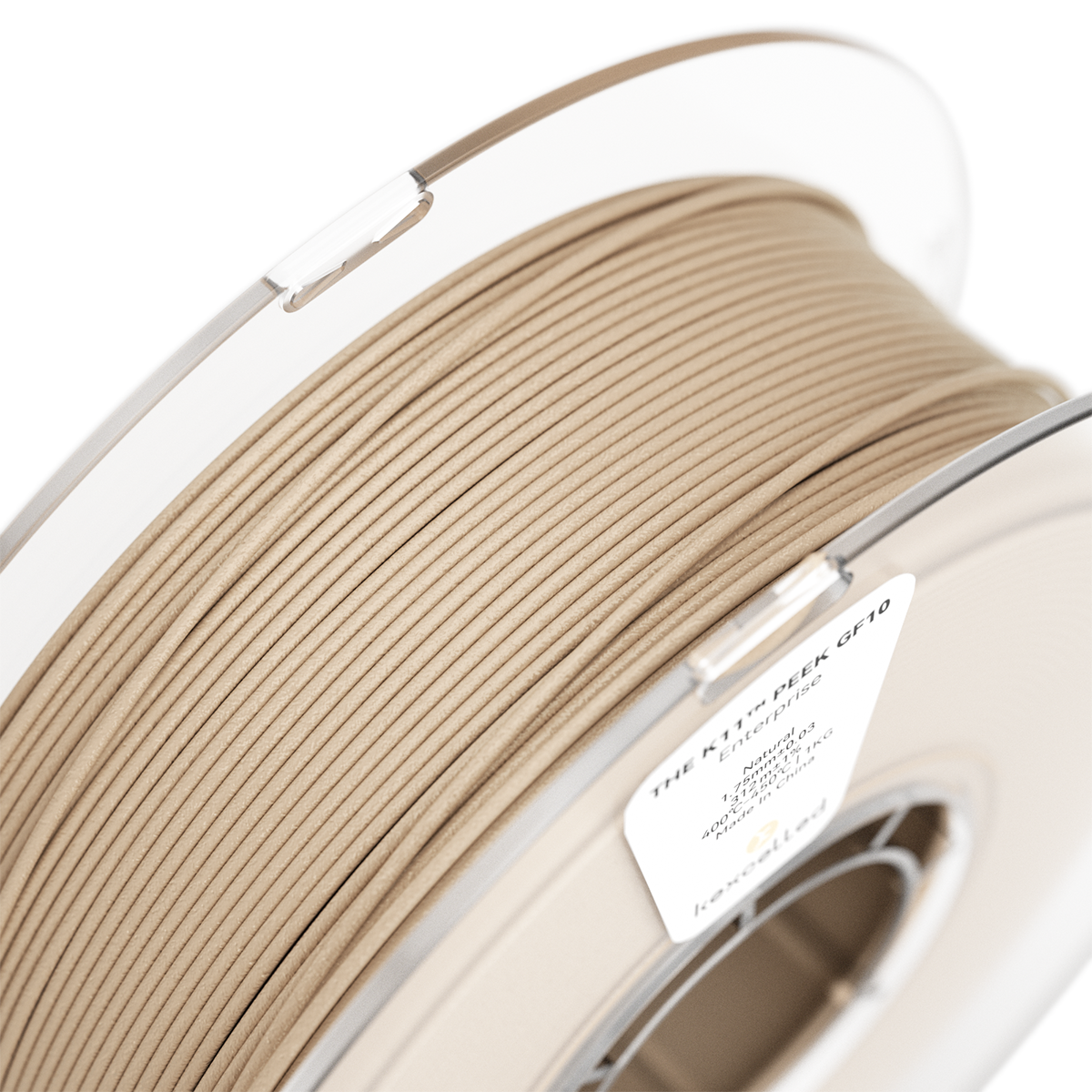

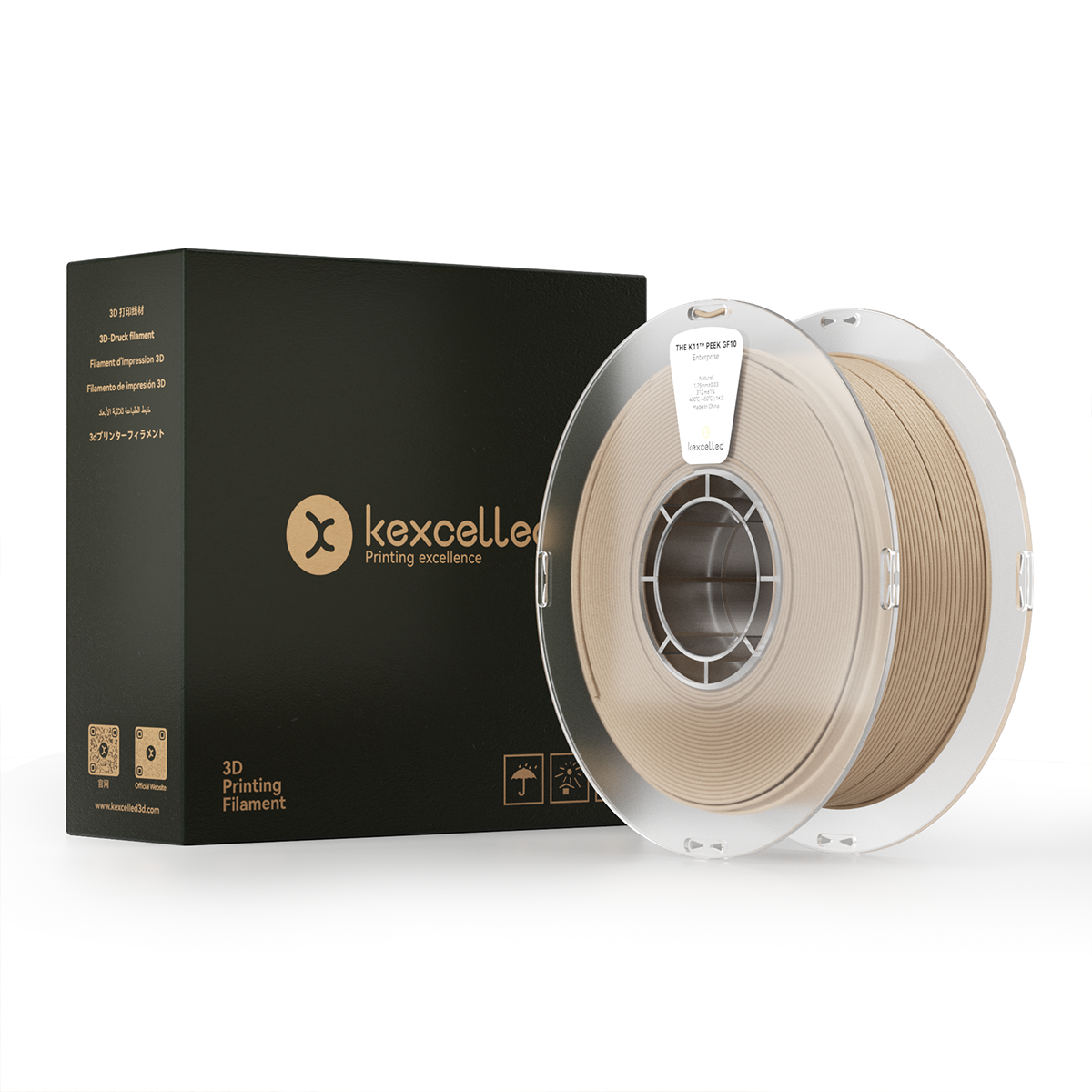

THE K11™ PEEK GF10
Color
Natural
Weight
Diameter
THE K11™ PEEK GF10 is a glass fiber-reinforced PEEK material with high strength and rigidity, and resistance to high temperatures.Instead of metal parts in many applications, printed parts are lightweight and strong, which functions are similar to PEEK K10CF, but with higher density and toughness.
Suggested Printing Parameters
| Nozzle temperature | 400 ~ 450℃ |
| Bed temperature | 110 ~ 220℃ |
| Chamber temperature | 80 ~ 220℃ |
| Bed modification | NO & High temperature glue |
| Active cooling fan | OFF |
| Layer height | 0.2mm |
| Shell thickness | ≥ 0.8mm |
| Print speed | 30~60mm/s |
Technical Data Sheet (TDS)
| Material Properties | Typical Value | Test Method |
|---|---|---|
| Melt temperature (HDT)² | ~340℃ | ISO 11357 |
| Melt flow rate (MFR)¹ | 10~15g/10min | ISO 1133 |
| Heat deflection temperature (HDT)² | 202℃ | ISO 75 |
| Vicat softening temperature (VST)³ | / | ISO 306 |
| Density | 1.28g/cm³ | ISO 1183 |
| Odor | Odorless | / |
| Solubility | Insoluble in water | / |
